Degradation Of PAT Results

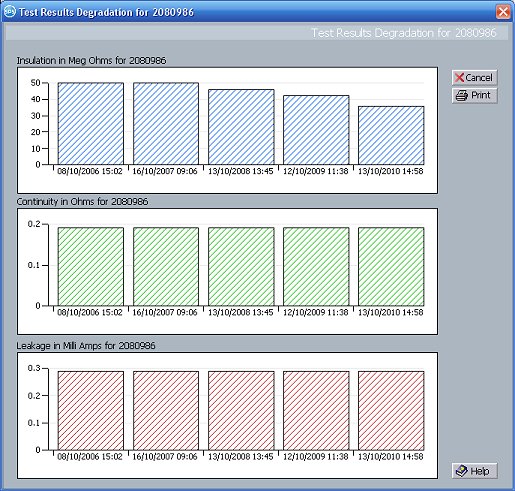

You print a graph showing the degradation in Insulation Resistance, Continuity and Leakage for an appliance by highlighting the appliance on the main SimplyPats screen and then clicking on the degradation button on the main toolbar. The following screen will be displayed.

NOTE! This feature will only work effectively where you use unique appliance id's for your appliances. If you have several customers with different appliances with the same appliance id, you will get invalid results!

NOTE! There may be some delay as SimplyPats looks through all your data files searching for unique occurences of the appliance you have selected and recovering the data. A progress bar will be shown giving you an idea of how long you may have to wait. If you are testing "in house" this wait will usually be very short.

In the example above you can clearly see the Insulation resistance dropping over the a period of 6 years.

Cancel

Closes the Degradation Of PAT Results screen.

Print

Allows you to print your graphs or generate a PDF of the print out. See Also Print Preview

Return To Contents

(This Topic Last updated 20/07/2011)
