Downloading First Stop Safety Memory PAT

Connecting the PAT to your PC

NOTE! SimplyPats does not communication directly with the Memory PAT but imports the .CSV files generated by First Stop Safety Memory PAT Download Utility.

If you have not already done so, download the Memory Pat utility from the First Stop Safety website:

http://www.firststopsafety.co.uk/Help/MemoryPAT/MemoryPAT.aspx

Downloading the Memory PAT

Connect the PAT to a PC using the USB cable provided with the Memory PAT.

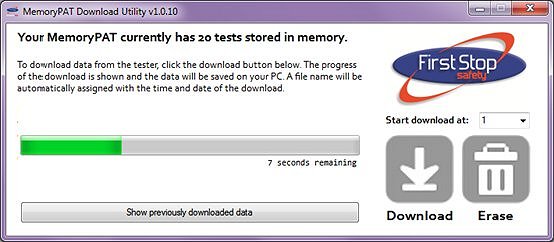

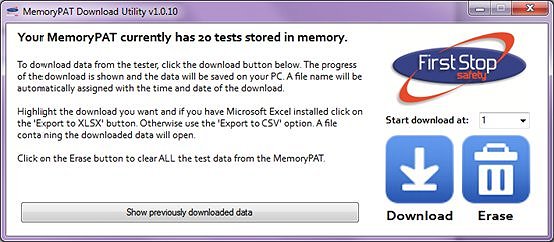

Open the download utility and click DOWNLOAD.

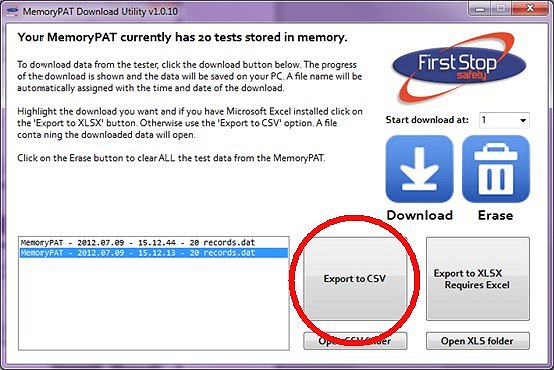

Once the download has completed select the correct download from the list and click Export to CSV.



By default the .CSV file will be saved in:

C:\...\My Documents\Documents\MemoryPAT\csv

Import the .CSV into SimplyPats

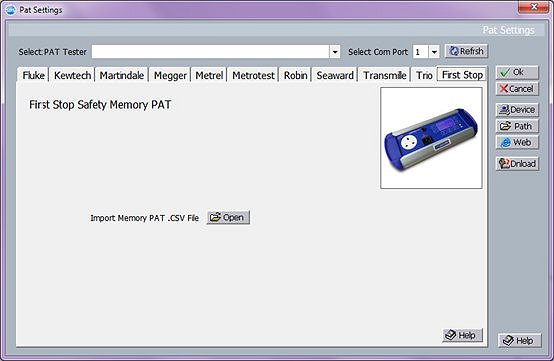

From the Pat Settings screen, select the First Stop Safety Memory PAT and click on the OpenOpen Button.

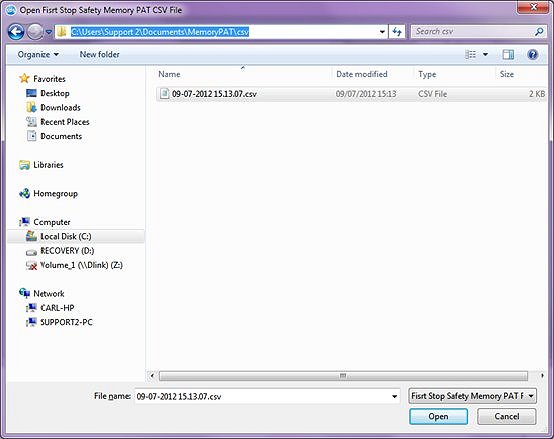

From the File Open dialogue, navigate to your Memory PAT folder to select your saved data file, (In the example below 09-07-2012 15.13.07.csv) and click on the Open Button.



Raw Data Backup

SimplyPats automatically creates a back up of the raw data downloaded from your PAT tester and places it in the backup folder within SimplyPats. This is usually in the folder C:\Program Files\SimplyPats 6\Backup\

Return To Download PAT Settings Screen

Return To Contents

(This Topic Last updated 13/07/2012)
