Downloading Robin SmartPat 5000 and SmartPat 5500

Connecting the PAT to your PC

Before going any further, make sure your PAT tester is connected to your computer using the supplied cable (only use the cable that came with your PAT tester). If you want to see more information on what cables you need to connect your PAT tester or if you are using a USB to Serial converter tp connect to your PC click here. Cable Connections From Pat Tester To PC

Setting what to use the Notes field on the PAT tester

Before downloading, ensure you have selected from the drop down box on the Pat Settings screen what you want to assign the Notes field on the Robin. Using the Notes Fields On Your PAT with SimplyPats

if you are using a Robin SmartPat 5500 please click here or scroll down to where the topic starts.

Downloading The Robin SmartPat 5000 or please click here for the SmartPat5500

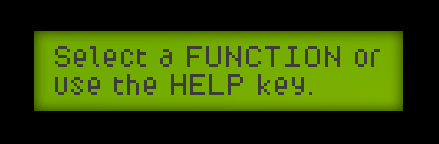

At the initial screen of the Robin SmartPat 5000 (if necessary press the RESET button on the SmartPAT 5000 to display this),

Press the RESULT key on the SmartPAT5000.

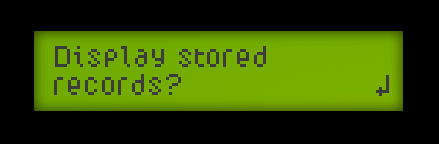

Press the NO key on the SmartPAT5000 keyboard.

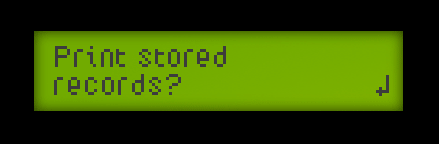

Press the NO key on the SmartPAT5000 keyboard.

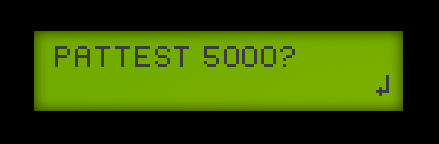

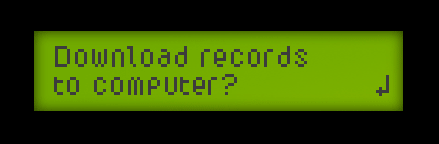

Press the YES key on the SmartPAT5000 keyboard.

Press the YES key on the SmartPAT5000 keyboard.

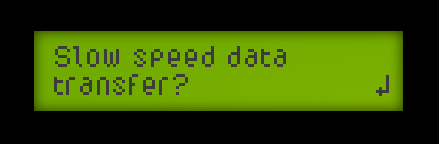

Make sure you press the NO key on the SmartPAT5000 keyboard.

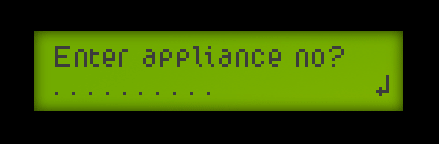

An individual appliance can be downloaded by pressing YES on the SmartPAT5000 then entering its appliance number at this screen

Otherwise press NO on the SmartPAT5000

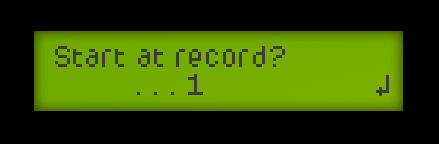

Either press NO on theSmartPAT5000 followed by the first record to be downloaded otherwise press YES.

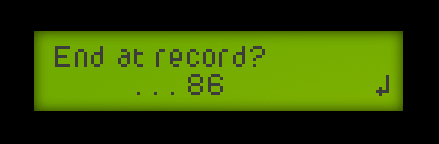

Either press NO on theSmartPAT5000 followed by the last record to be downloaded otherwise press YES.

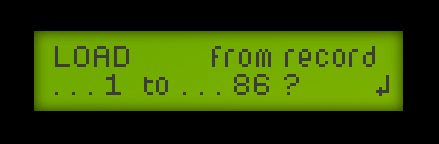

Confirm the range of records and, if correct, press YES on the SmartPAT5000.

On The SimplyPats PAT Settings Screen

On the SimplyPats PAT settings screen first Select the Com Port that your PAT tester is attached to using the drop down box at the top of the screen.

Now set the Baud Rate from the drop down box to the same that your PAT tester is set to.

To Start the Download process, click on the download button and you should see a screen similar to that shown below as SimplyPats waits for the data from your PAT tester.

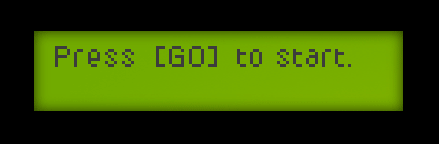

Finally, press the GO key on the SmartPAT5000.

After downloading has finished the test data will be displayed in SimplyPats.

Raw Data Backup

SimplyPats automatically creates a back up of the raw data downloaded from your PAT tester and places it in the RawData folder within the main SimplyPats folder. This location of this folder is usually C:\Program Files\SimplyPats 6\RawData\

Specific Version Information

KEWPAT Pro (Kewtech) Version

The KEWPAT Pro (Kewtech) Version of SimplyPats, only supports download from the Kewtech KT74, KT75, KT77 and Robin SmartPat 5000 5500, with manual entry of Asset and Test Data also supported.

Return To Download PAT Settings Screen

Return To Contents

Downloading Robin SmartPat 5500

Downloading The Robin SmartPat 5000

At the initial screen of the Robin SmartPat 5500 (if necessary press the RESET button on the SmartPAT 5500 to display this),

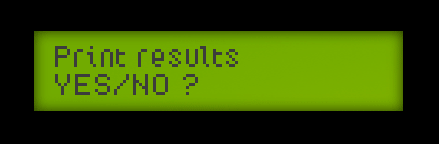

Press PRINT/PC Key, the following screen is displayed.

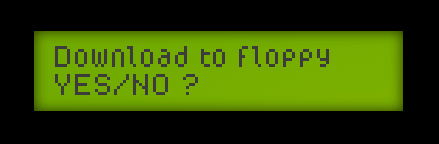

Select NO, the following screen is displayed.

Select NO, the following screen is displayed.

Select NO,

On The SimplyPats PAT Settings Screen

On the SimplyPats PAT settings screen first Select the Com Port that your PAT tester is attached to using the drop down box at the top of the screen.

Now set the Baud Rate from the drop down box to the same that your PAT tester is set to.

To Start the Download process, click on the download button and you should see a screen similar to that shown below as SimplyPats waits for the data from your PAT tester.

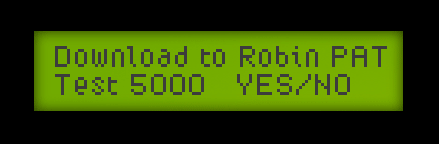

Your Robin 5500 should still be displaying the following screen.

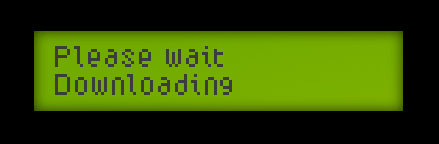

Select YES to Download to Robin PAT Test 5000, download will begin, and the following message will be displayed.

Once complete, the PAT should display Downloading Complete and the data will be displayed in Simplypats.
